Specification:
Specifications

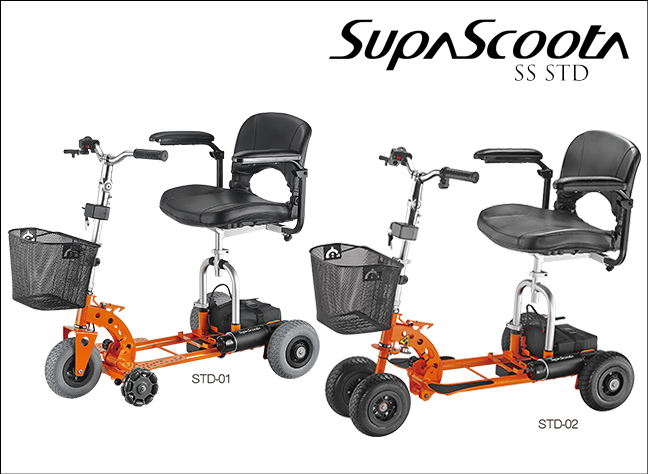

STD-01 / STD-02
Number of Wheels
STD-01:3 + 2 stabilizer
STD-02: 4
Front Wheel Size
STD-01: 200 x 65 mm (8 x 2.5")
STD-02: 200 x 65 mm (8 x 2.5")
Rear Wheel Size
200 x 65 mm (8 x 2.5")
Ground Clearance
60 mm (2.4")
Length
STD-01: 945 mm (37")
STD-02: 1000 mm (39")
Weight Without Seat
STD-01: 15.6 kgs(34.5 lbs) Included stabilizer wheels
STD-02: 14.9 kgs (33 lbs),
Without Front Wheel 13.3kg(29.3 lbs)
Weight of Seat
5.8 kgs (13 lbs incl. seat frame & arm rest)
Max Loading
80 kgs (175 lbs)
Turn Radius
STD-01: 780 mm (31")
STD-02: 900mm (35.5")
Transmission
Worm Drive Gearbox
Reverse
Forward/Reverse Switch
Brakes
Dynamic Braking & Electromagnetic Brake
Battery (SLA)
12v 20 ah- 6.6kg (14.5 lbs)
Battery (Lithium)
12V 20ah- 2.9 kg (6.5 lbs)
Charger (SLA battery)
Off board 12 volt 3 amp
Charger (Lithium battery)
Off board 12 volt 5 amp -0.9 kg (2 lbs)
Max Speed
6.5 kph (4 mph) (2nd speed choice– 3.9 Kph -2.4 mph)
Slope Grade Ability
Max. Recommended - 9 Degrees. with 80 kg (175 Ibs) load.
Travel Distance
Up to 13 km (8 miles) with standard SLA battery, Up to 16 km (10 miles) with 20ah lithium battery
Arm Rests
Distance between armrests 45cm - 55cm (18 -22")
Speed Reduction System
Reduces operating speed to a safe level when turning
