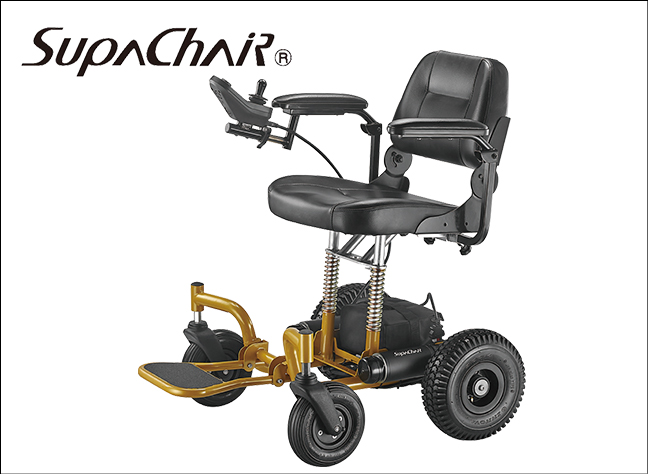

SAFARI Sport
Specification:
Specifications
SAFARI Sport
Drive Wheels size
260 mm (10")
Caster Wheels size
200 mm (8")
Overall Length
910 mm (35.8")
Overall Width
610 mm (24")
Standard Seat Width
410 mm (16.2")
Standard Seat Depth
400 mm (15.8")
Back rest height
370 mm (14.6")
Weight Capacity
125 Kg (276 lbs)
Total Weight With Batteries (SLA)
38.4 Kg (85 lbs)
Weight of Motor mount complete
18.6 Kg (41 lbs)
Heaviest Piece
18.6 Kg (41 lbs)
Breaks Down Into
2 pieces
Weight of seat (included armrest)
10.6 kg (23.4 lbs)
Maximum Speed SLA battery
Turning Radius
730 mm (28.7")
Ground Clearance
{160 (6.3")on foot board} 105mm (4.1")
Battery (SLA/Lithium)
24V15ah
Weight of battery (SLA/Lithium)
9.2Kg/4Kg (20 lbs / 9 lbs)
Slope Grade Ability
8 degree
Travel Distance SLA/ Lithium
Up to 10/16 km (Up to 6.2 / 10 mile)
Battery Charger SLA
2A Off Board
Battery Charger Lithium
4A Off Board
Armrest height
200 (7.9")
Brake
Dynamic Braking and Electromagnetic Brake
