Specification:
Specifications

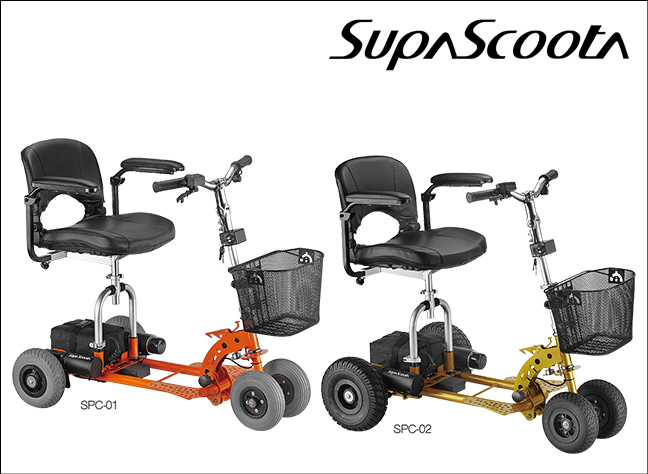

SPC-01 / SPC-02
Front Wheel Size
SPC-01: 200 x 50 mm (8 x 2")
SPC-02:200 x 65 mm (8 x 2.5")
Rear Wheel Size
SPC-01:200 x 65 mm (8 x 2.5")
SPC-02:260 x 85 mm (10 x 3")
Ground Clearance
50 mm (2")
Length
SPC-01:1000 mm (39")
SPC-02:1040 mm (41")
Width
SPC-01:570 mm (22.5")
SPC-02:600 mm (24")
Weight Without Seat
SPC-01:17.8 kgs (39 lbs)(200x85 tires)
SPC-02:19.9 kgs (44 lbs)(300-4 tires)
Weight of Seat
5.8 kgs (13 lbs incl. seat frame & arm rest)
Max Loading
105 kgs (230 lbs) on level ground
Turn Radius
SPC-01:875mm (34.5")
SPC-02:895 mm (35")
Motor Output
SPC-01:2 x 150W
SPC-02:2 x 180W
Transmission
Worm Drive Gearbox
Reverse
Forward/Reverse Switch
Brakes
Dynamic Braking & Electromagnetic Brake
Battery (SLA)
24V 15 ah- 9.2kg (20 lbs)
Battery (Lithium)
24V 15ah- 4.0 kgs (9 lbs)
Charger (SLA battery)
On/Off board 24 volt 2 amp
Charger (Lithium battery)
On/Off board 24 volt 4 amp
Max Speed
SPC-01:
6.5 kph (4 mph) (2nd speed choice– 3.9 Kph -2.4 mph)
SPC-02:
9.0 kph (5.6 mph)
(2nd speed choice– 5.2 Kph - 3.2 mph)
Slope Grade Ability
Max. Recommended - 9 Degrees.
Travel Distance
SPC-01:
Up to 18 km (11 miles) with standard SLA battery, Up to 22 km (13.6 miles) with 15ah lithium battery
SPC-02:
Up to 15 km (9.3 miles) with standard SLA battery,
Up to 19 km (11.8 miles) with 15ah lithium battery
Arm Rests
Distance between armrests 45cm - 55cm (18 -22")
