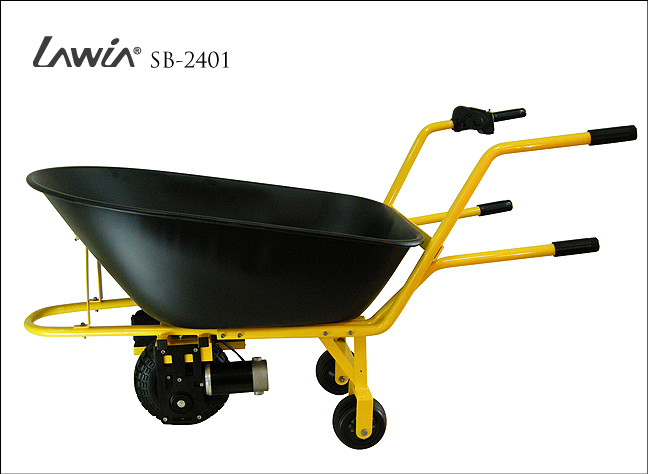

Features Of WB-2401
- Digital of electronic system for performance and durability.
- 24V 14ah battery with electronic automatic charger.
- Electronic cut-off for protection of motor and electronic.
- Speed selection by potentiometer adjustment for easy operation.
- 3 wheels.
- Steel hopper for rigid and reliability.
- Push button for speed control.
Specification:
Motor
24 volt 350 watt DC.
Gearbox
worm drive gear box.
Speed
speed choice- via Potentiometer
Battery
2 x 12V 14ah sealed lead acid, and maintenance free.
Charger
24V 2a Fully automatic.
Tyres
Front 4.10/3.50- 4 2 ply tyres with inner tubes. Rear 5” rigid type
Width at widest point
67cm (26.4 in)
Internal width of hopper
63cm (25 in)
Deepest point of hopper
31cm (12.2 in)
Length of hopper
approx.90cm (35.4 in)
Handle Height
84cm (33 in)
Height From Ground To Hopper Top
73cm (29 in)
Overall Length
141cm (55.5 in)
Max Load
80KGS (176 pounds)
