Disability Products / Lift Chair

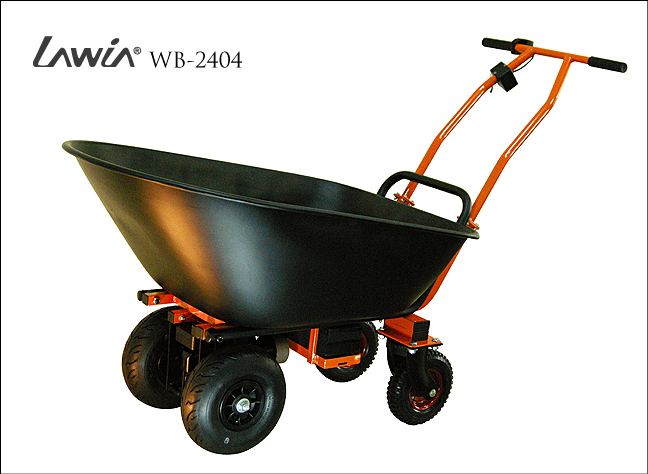

Power Wheel Barrow /WB-2403

Features Of WB-2404

  • An easy lock and release hopper.
  • Digital of electronic system for performance and durability.
  • 24V 14ah battery with electronic automatic charger.
  • 4 wheels for stability.
  • Steel hopper for rigid and reliability.
  • Thumb operation for speed control.
  • Forward and reverse choice.
  • Electronic cut-off for protection of motor and electronic.
  • Two speed selection for easy operation.

Specification:

Motor
24 volt 350 watt DC.
Gearbox
worm drive gear box.
Speed
two speed choice- 1st approx 4 Kph (2.5 mph), 2nd approx 2 Kph (1.3 mph)
Battery
2 x 12V 14ah sealed lead acid, and maintenance free.
Charger
24V 2a Fully automatic.
Tyres
Front 4.10/3.50- 4 2 ply tyres with inner tubes. Rear 2.50-4 swivel type with Solid tires
Hopper capacity
6 cu.ft.
Width at widest point
67cm (26.4 in)
Internal width of hopper
63cm (25 in)
Deepest point of hopper
31cm (12.2 in)
Length of hopper
approx.90cm (35.4 in)
Handle Height
96cm (37.8 in)
Height From Ground To Hopper Top
55 - 63cm (22-25 in)
Overall Length
145cm (57 in)
Width
67cm (26 in)
Height
99cm (39 in)
Max Load
80KGS (176 pounds)
