Disability Products / Mobility Scooter/SupaScoota-std
Disability Products / Mobility Scooter/SupaScoota-std
Disability Products / Mobility Scooter/SupaScoota-std
Disability Products / Mobility Scooter/SupaScoota-std
Disability Products / Mobility Scooter/SupaScoota-std
Disability Products / Mobility Scooter/SupaScoota-std
Disability Products / Mobility Scooter/SupaScoota-std

Specification:

Specifications

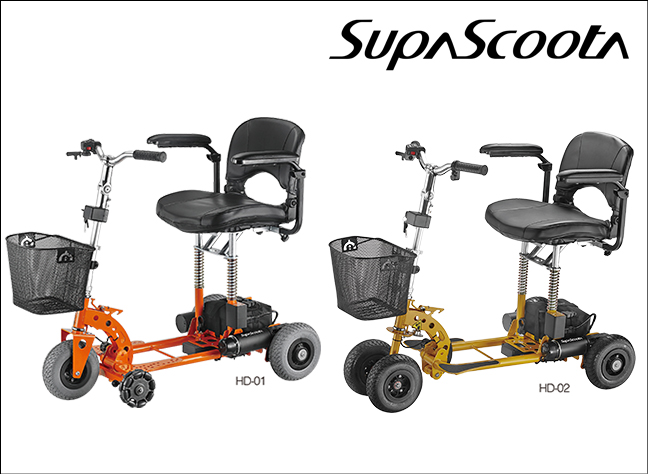

HD-01 /02
Number of Wheels
HD-01:3 + 2 stabilizer
HD-02: 4
Front Wheel Size
HD-01: 200 x 65 mm (8 x 2.5")
HD-02: 200 x 65 mm (8 x 2.5")
Rear Wheel Size
200 x 65 mm (8 x 2.5")
Ground Clearance
60 mm (2.4")
Length
HD-01:970 mm (38")
HD-02:1010 mm (40")
Width
570 mm (22.5")
Weight Without Seat
HD-01:
Front frame : 10.5kg (23 lbs)
Back frame : 9.8kg (21.5 lbs)
HD-02:
Front frame : 10.2 kg (22.4 lbs),
Without Front wheels:8.5kg (18.7 lbs)
Back frame : 10kg (22 lbs)
Weight of Seat
7.7 kgs (17 lbs incl. seat frame & arm rest)
Max Loading
125kg (275 lbs) on level ground
Turn Radius
HD-01: 780 mm (31") (38.5")
HD-02: 910mm (36")
Motor Output
2 x 150W
Transmission
Worm Drive Gearbox
Reverse
 Forward/Reverse Switch
Brakes
 Dynamic Braking & Electromagnetic Brake
Battery (SLA)
24V 15 ah -  9.2kg (20 lbs)
Battery (Lithium)
24V 15ah - 4.0 kgs (9 lbs)
Charger (SLA battery)
Off board 24 volt 2 amp
Charger (Lithium battery)
Off board 24 volt 4 amp -0.9 kg (2 lbs)
Max Speed
6.5 kph (4 mph) (2nd speed choice– 3.9 Kph -2.4 mph)
Slope Grade Ability
9 Degrees with120kg (260 lbs) load. 12 Degrees with 100kg (220 lbs) load
Travel Distance
Up to 16 km (10 miles) with standard SLA battery,  Up to 20 km (12.4 miles) with 15ah lithium battery
Arm Rests
Distance between armrests 45cm - 55cm (18 -22")
Speed Reduction System
Reduces operating speed to a safe level when turning
