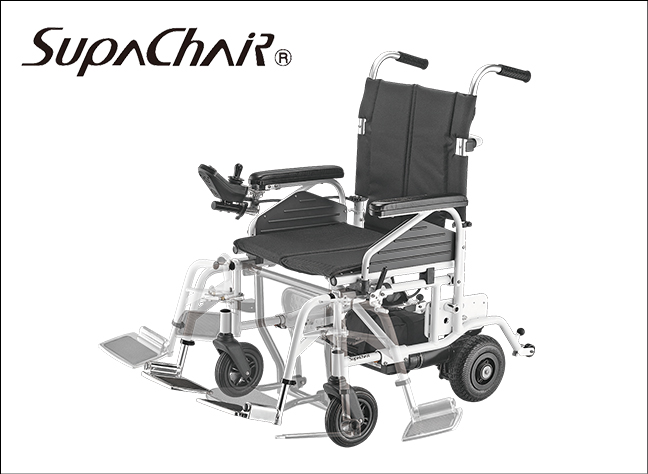

Combi Classic 18/ Combi Classic 20
Specification:
Specifications
Combi Classic 18 / Combi Classic 20
Drive Wheels size
200 mm (8")
Caster Wheels size
178 mm (7")
Overall Length
1210 mm (47.6")
Overall Width
600 mm (23.6")
Standard Seat Width
Combi Classic 18 : 460mm (18.1")
Combi Classic 20 : 500mm (19.7")
Standard Seat Depth
Combi Classic 18 : 450mm (17.7")
Combi Classic 20 : 460mm (18.1")
Back rest height
470 mm (18.5")
Weight Capacity
150Kg (330 lbs)
Total Weight With Batteries (SLA)
Combi Classic 18 : 35.3 kg (78 lbs)
Combi Classic 20 : 35.5 kg (78 lbs)
Weight of Motor mount complete
Combi Classic 18 : 13.2 Kg (29 lbs)
Combi Classic 20 : 13.3 Kg (29.3 lbs)
Heaviest Piece
Combi Classic 18 : 13.2 Kg (29 lbs)
Combi Classic 20 : 13.3 Kg (29.3 lbs)
Detachable foot board
Combi Classic 18 : 2 Kg (4.4 lbs)
Combi Classic 20 : 2.1 Kg (4.6 lbs)
Breaks Down Into
6 pieces
Maximum Speed SLA battery
6.2kph (3.9 mph)
Turning Radius
780 (30.7")
Ground Clearance
83(3.3") {40(1.6") on foot board}
Battery (SLA/Lithium)
24V15ah
Weight of battery (SLA/Lithium)
9.2Kg/4Kg (20 lbs / 9 lbs)
Slope Grade Ability
9degree
Travel Distance SLA/ Lithium
Up to 10 / 16.5 km (Up to 6.2 / 10.2 mile)
Battery Charger SLA
2A Off Board
Battery Charger Lithium
4A Off Board
Armrest height
200 (7.9")
Brake
Dynamic Braking and Electromagnetic Brake
