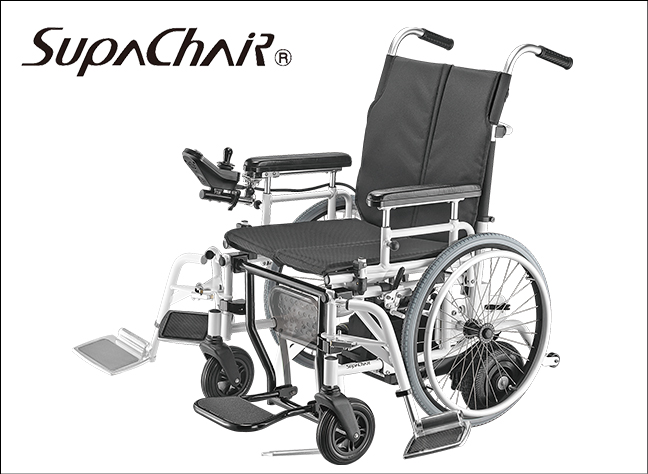

Combi 18 / Combi 20
Specification:
Specifications
Combi 18 / Combi 20
Drive Wheels size
200 mm (8")
Caster Wheels size
178 mm (7")
Overall Length
1210 mm (47.6")
Overall Width
Combi 18: 600 mm(23.6")
Combi 20: 640 mm(25.2")
Standard Seat Width
Combi 18: 460 mm(18.1")
Combi 20: 500 mm(19.7")
Standard Seat Depth
450 mm(17.7")
Back rest height
470 mm(18.5")
Controller
Dynamic LiNX LE
Weight Capacity
150Kg(330 lbs)
Total Weight With Batteries (SLA)
Combi 18: 36.5kg (80 lbs)
Combi 20: 36.7kg (81 lbs)
Weight of Motor mount complete
Combi 18: 13.2Kg(29 lbs)
Combi 20: 13.3Kg (29.3 lbs)
Heaviest Piece
Combi 18: 13.2Kg(29 lbs)
Combi 20: 13.3Kg(29.3 lbs)
Detachable foot board
Combi 18: 2Kg
Combi 20: 2.1Kg
Breaks Down Into
6 pieces
Maximum Speed SLA battery
6.2kph (3.9 mph)
Turning Radius
780 (30.7")
Ground Clearance
83(3.3") {40(1.6") on foot board}
Battery (SLA/Lithium)
24V15ah
Weight of battery (SLA/Lithium)
9.2Kg/4Kg (20 lbs / 9 lbs)
Slope Grade Ability
9 degree
Travel Distance SLA/ Lithium
Up to 10/16.5km (Up to 6.2 / 10.2mile)
Battery Charger SLA
2A Off Board
Battery Charger Lithium
4A Off Board
Armrest height
160/200 (6.3"/7.9")
Brake
Dynamic Braking and Electromagnetic Brake
